• General characteristics

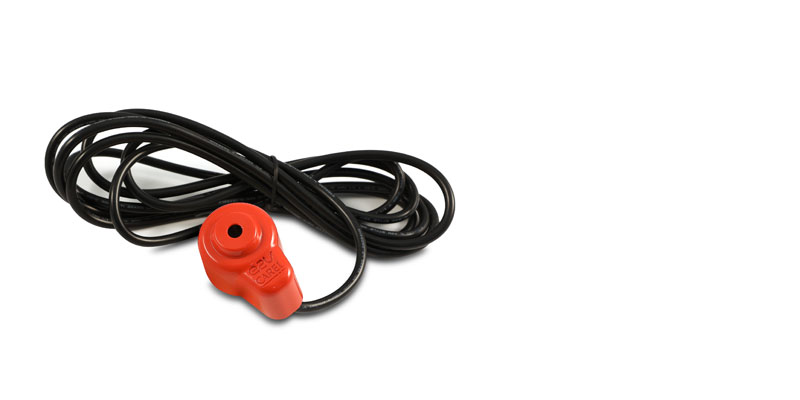

    The new ATEX certified stators for electronic expansion valves share the same robust design as the standard stators, with additional protection for potentially explosive atmospheres.
    Available in both bipolar and unipolar versions and with cables in different lengths, the stators are certified according to the Conformity Assessment Scheme 2014/34/EU and belong to Group II Category 3G.
    Detailed information regarding the harmonised reference standards, product part numbers, construction and installation details are available in the specific technical leaflets.




  • Technical Leaflets
    Code Description Language Date * Release
    Code +050001442
    Description E2V Unipolar and Bipolar ATEX Stator - Installazione kit statore / Stator kit installation / Installation du kit stator / Installation des Stator-Bausatzes / Instalación del kit de estátor
    Language ENG  FRE  GER  ITA  SPA
    Date 27/01/2022
    Release 1.1


  • High resolution images
    Code Description Language Date * Release
    Code PH21LE2306-E2V-ATEX-stator
    Description CAREL ATEX - Electronic expansion valve - ExV - EEV Technology
    Language ALL
    Date 11/03/2022
    Release R.0
