heaterSteam V2
UR*
General characteristics
Only for the U.S. market

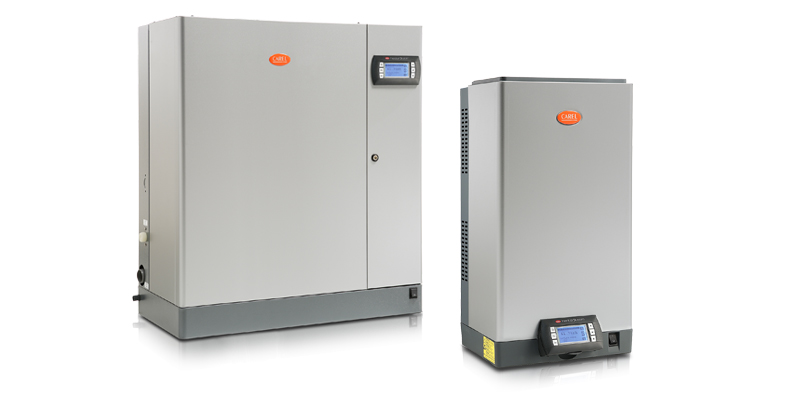

The new range of heaterSteam humidifiers with immersed heaters includes models from 2 to 80 kg/h of steam, and can operate with drinking or demineralized water. The use of demineralized water reduces maintenance virtually to zero. heaterSystem features exclusive technological solutions covered by a patent, such as the electric heaters included in cast aluminium alloy with a large exchange surface area, each with a temperature sensor inside. The temperature sensor has two functions: protection against over-heating, for maximum reliability over time, and detection of excessive deposit of limestone well in advance, to allow proper preventive maintenance.

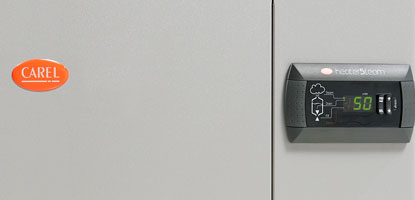

The modulating control with solid state relays guarantees high precision in humidity control, making heater Steam the ideal solution even for the most demanding applications.
For each capacity there are two variants: base and full optional.
The full optional machines, compared to the base ones, have thermal insulation around the boiler for maximum energy saving, and the heating elements are coated with non-stick material to facilitate the detachment of limestone.
They also have a water temperature sensor that allows the useful pre-heating function, for a quick response to any humidification request.
All models feature an automatic system to measure the conductivity of the supply water which optimizes the management of drainage without requiring, in general, the analysis of water during installation. This function also means energy saving and reduction of maintenance.-
Plus
Only for the U.S. market
- precision ±1% U.R.
- the heating elements are embedded in light cast alloys for perfect heat distribution;
- the temperature sensors inserted in the heating elements prevent any over-heating;
- the heating elements, coated with non-stick material (mod. full optional) are very easy to clean;
- continuous modulation of production from 0 to 100% of the nominal capacity;
- Anti Foaming System to prevent the emission of droplets with the steam;
- modulating limit probe to avoid any condensation in the duct (model H);
- water pre-heating function (mod. full optional);
Documentation
Technical
-
Certificates
* Entries are ordered by date
Code Description Language Date * Release Code tuv_6 Description heaterSteam: TUV certification Language GER Date 27/06/2003 Release Code tuv_5 Description heaterSteam: TUV certification Language ENG FRE GER ITA POR SPA Date 27/06/2003 Release Code ETL_3 Description heaterSteam 20-30 kg/h: ETL certification Language ENG FRE GER ITA POR SPA Date 27/11/2002 Release Code ETL_2 Description heaterSteam 6-10 kg/h: ETL certification Language ENG FRE GER ITA POR SPA Date 27/11/2002 Release Code ETL_1. Description heaterSteam 2-4 kg/h: ETL certification Language ENG FRE GER ITA POR SPA Date 27/11/2002 Release -
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +0300080DE Description heaterSteam - UR Befeuchter mit elektrischen Heizelementen Language GER Date 05/02/2018 Release 1.4 Code +0300075FI Description heaterSteam - UR Vastustoiminen kostutin Language FIN Date 29/09/2015 Release 1.2 Code +0300075EN Description heaterSteam - UR Electric resistance humidifier Language ENG Date 29/09/2015 Release 1.2 Code +0300075ES Description heaterSteam - UR Humidifi cador por resistencias eléctricas Language SPA Date 29/09/2015 Release 1.2 Code +0300075PT Description heaterSteam - UR Humidifi cador de resistências elétricas Language POR Date 29/09/2015 Release 1.2 Code +0300075DE Description heaterSteam - UR Befeuchter mit elektrischen Heizelementen Language GER Date 29/09/2015 Release 1.2 Code +0300075FR Description heaterSteam - UR Humidificateur à résistances électriques Language FRE Date 29/09/2015 Release 1.2 Code +0300075IT Description heaterSteam - UR Umidificatore a resistenza elettriche Language ITA Date 29/09/2015 Release 1.2 Code +030220311 Description Humiset Language ENG Date 01/09/2014 Release 2.2 Code +030220310 Description humiSet Humidifier Programming Tool Language ITA Date 01/09/2014 Release 2.2 Code +030222014 Description heaterSteam - UR: Humidificador por resistencias eléctricas Language SPA Date 31/10/2012 Release 2.4 Code +030222013 Description heaterSteam - UR: Befeuchter mit elektrischen Heizelementen Language GER Date 31/10/2012 Release 2.4 Code +030222012 Description heaterSteam - UR: Humidificateur à résistances électriques Language FRE Date 31/10/2012 Release 2.4 Code +030222011 Description heaterSteam - UR: electrical heater humidifier Language ENG Date 31/10/2012 Release 2.4 Code +030222010 Description heaterSteam - UR:umidificatore a resistenze elettriche Language ITA Date 31/10/2012 Release 2.4
