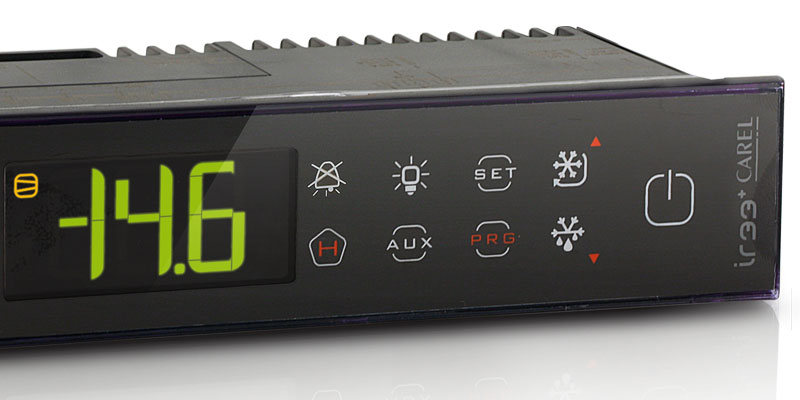

ir33+ FMC

PBF3D0HCHG
ir33+ FMC
ir33+ FMC ir33+ FMC

  • General characteristics

    ir33+ Wide for Embraco Fullmotion compressors simplifies the use and management of variable speed compressors for all customers on the commercial refrigeration market.



    Simple to use

    Significant variations in compressor capacity and enormous energy reductions can be easily achieved by setting a couple of parameters.

    The dedicated PWM frequency output and simple parameter configuration can be used to configure an individual speed table for:

    • plug-in islands and units
    • catering and professional equipment
    • ice cream coolers
    • small cold rooms
    • wine coolers
    • showcases



    Complete solution

    All the knowledge and experience we have acquired from the market and our current ir33+ platform are included and combined together in this controller. Temperature, defrost and fans are managed, functions that are already appreciated on the market.

    New features in this range are:

    • Embraco Fullmotion management
    • Special hot gas defrost management
    • Pull Down management



    High performance

    Due to the high efficient Embraco Fullmotion compressor and the use of our ir33+ Wide, significant reductions in energy consumption can be achieved.

  • Plus

    • huge OPEX reduction
    • up to 40% energy savings
    • fast cooling by Pull Down management
    • system and temperature stability
    • noise reduction with BLDC technology
    • precise defrost m anagement
    • eco friendly with the use of
    • natural refrigerant


Documentation

Technical

  • Quick Guide
    Code Description Language Date * Release
    Code +040000055

    Description Solution for Embraco Fullmotion Compressor

    Language ENG  ITA  SPA

    Date 20/12/2017

    Release 1.1


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000082EN

    Description Exhibition @ a glance

    Language ENG

    Date 09/10/2014

    Release 2.0

    Code +3000087IT

    Description ir33+ FMC Soluzione ad alta efficienza per Compressori Embraco Fullmotion

    Language ITA

    Date 04/06/2014

    Release 1.0

    Code +3000087EN

    Description High Efficiency Solution for Embraco Fullmotion Compressor

    Language ENG

    Date 04/06/2014

    Release 1.0

    Code +3000087ES

    Description ir33+ FMC Solución de alta eficiencia para Compresores Embraco Fullmotion

    Language SPA

    Date 04/06/2014

    Release 1.0

    Code +3000087PT

    Description ir33+ FMC Solução de alta eficiência para Compressores Embraco Fullmotion

    Language POR

    Date 04/06/2014

    Release 1.0

    Code +3000087FR

    Description ir33+ FMC: Solution haute efficacité pour Compresseurs Embraco Fullmotion

    Language FRE

    Date 04/06/2014

    Release 1.0


Images

  • High resolution images
    Code Description Language Date * Release
    Code PH11LIR309-ir33-plus-wide-FCM

    Description CAREL-Refrigeration Parametric Controls-ir33+ platform

    Language ALL

    Date 17/09/2021

    Release R.0
